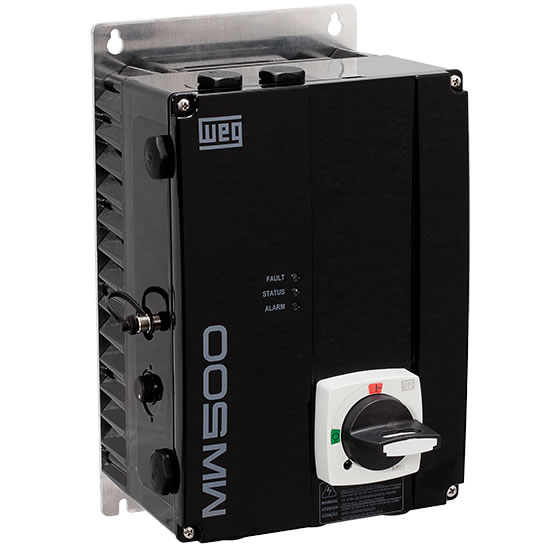

MW500 Decentralized Drive (0.75 to 3.7 kW)

MW500 Decentralized Drive (0.75 to 3.7 kW)

A Decentralized solution brings independence for all applications. The MW500 covers power levels from 0.75 to 3.7 kW (1.0 to 5.0 HP).

SKU: MW500 Categories: ,


Decentralizing solutions

Features and Benefits
  • Power range: 0.75 to 3.7 kW (1.0 to 5.0 HP)
  • Three-phase
  • Power supply voltage: 200-240 V and 380-480 V
  • Scalar Control(V/F) and Vector Control(VVW)
  • Overload capacity: 150% current in 60 sec.
  • RFI Filter built-in (accessory)
  • Switch-Disconnector built-In (optional)
  • Analog Potentiometer and LED for status indicator built-In
  • Ambient temperature -10 ºC up to 50 ºC (14 °F up to 122 °F)
  • All the electronic boards are conformally coated classified as 3C2 according to IEC 60721-3-3 standard
  • Protection Degree IP66/NEMA 4X
  • SoftPLC function built-in
  • Plug-in modules: I/Os, USB and fieldbus communication (same as CFW500)
  • Flash memory module: In few seconds, it is possible to download the programming from a MW500 to others without powering them up
  • Communication protocols: Modbus RTU (RS-485 available with all plug-in modules), CANopen, DeviceNet and Profibus DP
  • WLP and SuperDrive G2 free software

Motor Mounting

Wall Mounting

Free Software

WLP (WEG Ladder Programmer)

The WLP or “Weg Ladder Programmer” is a software that allows the user to program using ladder language, command and monitoring. It is a powerful 32 bits tool that grants you characteristics and functionalities to create professional applications through simple mouse clicks.

Software Superdrive G2

SuperDrive G2 is a tool for parameter setting, command and monitoring of drives. With intention to make the use of drives as easy and convenient as possible, the software provides user-friendly viewing, manipulating, and editing data with the drive. The data can also be stored and retrieved.

  • Centrifugal pumps
  • Process dosing pumps
  • Fans / exhausters
  • Compressors
  • Mixers / Bottlers
  • Washers / Driers
  • Conveyor belts
  • General machinery
